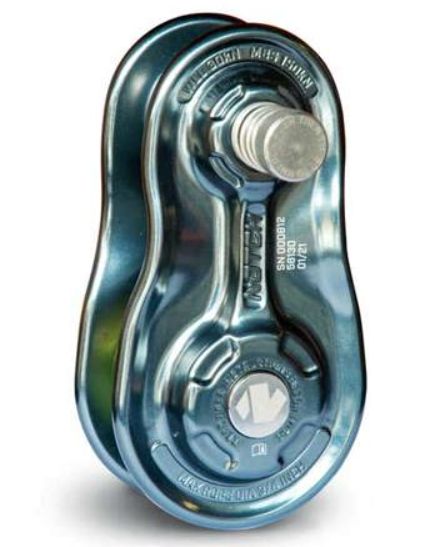

Notch 19mm Rigging Block

$495.00

The NOTCH 19mm Arb Rigging Block is a lightweight, high-strength aluminium rigging block designed for tree care and arborist applications. It is compatible with rigging lines from 11-19mm in diameter and features rope-friendly rounded edges and side fairleads. The spring-loaded top lock ensures a secure connection between the side plates, providing a WLL of 30 kN and an MBS of 150 kN.

Additional features

  • For use with rigging lines up to 19mm
  • 30 kN WLL / 150 kN MBS
  • Hot forged aluminum side plates with rope friendly rounded cheeks
  • Precision CNC machined aluminum sheaves with wide bend radii
  • Low profile, secure, easy-to-open two stage captive spring pin lock
  • High wall, full diameter, improved anchor sling protection
  • Wide, concave upper sheave accepts 29mm anchor slings
  • Flared sideplates reduce twisting in complex rigging scenarios

Specifications

Length 195 mm
Weight 1.6 kg
Suitable for cable? NO
Working Line Ø ≤ 19 mm
Top Strop Ø ≤ 29 mm
MBS 150 kN
WLL 30 kN
