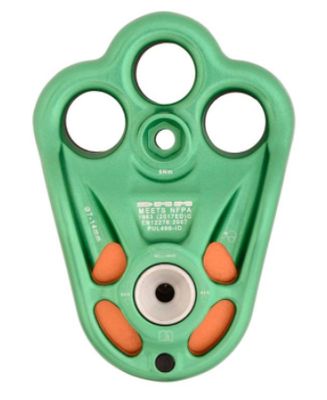

DMM Rigger Pulley


An evolution of the Triple Attachment Pulley first brought to the market 10 years ago by DMM.

The hot forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication. The Rigger Pulleys feature a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity.

Bolstered connection areas lead to high configured strengths. The newly developed side plates combined with the axle construction means a hugely increased MBS to 40kN. The side plates boast increased fairleads and tuned angles for more efficient prusik minding.

The Rigger Pulley comes in two versions; the Rigger and the Rigger Becket. Both feature high efficiency roller bearings.

Product Name Product Code Rope Range Dimensions Sheave Diameter Weight WLL MBS Certification
Rigger Pulley
PUL400 7-14mm 68 x 94mm 28mm 176g 8kN 40kN EN12278:2007
